Trak Racer Pro Haptic Bass Shaker Kit – 200W 2-Channel Amp, 100W Shaker & Universal Mount
Add powerful, physical feedback to your simulator with one complete haptic upgrade.
The Trak Racer Pro Haptic Bass Shaker Kit combines a powerful 200W 2-channel Class-D amplifier, TR-BSA100 low-frequency tactile transducer and universal mounting plate to deliver immersive vibration directly through your simulator.
Feel engine RPM, exhaust vibration, kerbs, road texture, bumps, impacts, wheel slip, gear changes, runway vibration and other low-frequency effects through your cockpit instead of relying only on sound and visual feedback.
The included universal mount allows the shaker to be securely installed on a wide range of Trak Racer cockpits and compatible third-party simulator frames, making this an easy all-in-one tactile feedback upgrade.

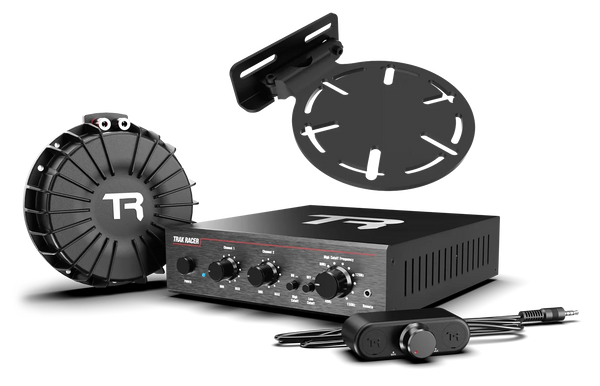

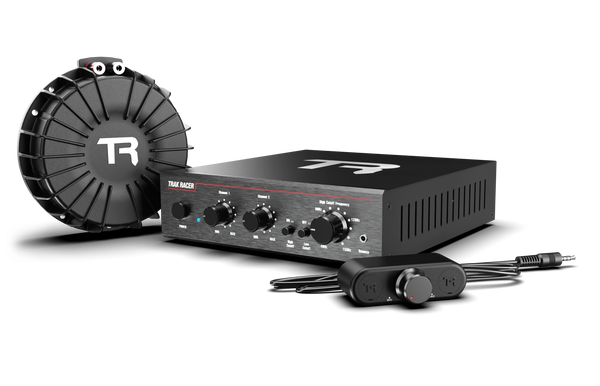

Complete Haptic Upgrade
Amplifier + Bass Shaker + Universal Mount
This kit includes everything needed to add powerful low-frequency tactile feedback to a compatible simulator without sourcing the amplifier, transducer and mounting solution separately.
The amplifier also provides a second output channel, allowing you to add another compatible bass shaker later for an even more immersive multi-point setup.

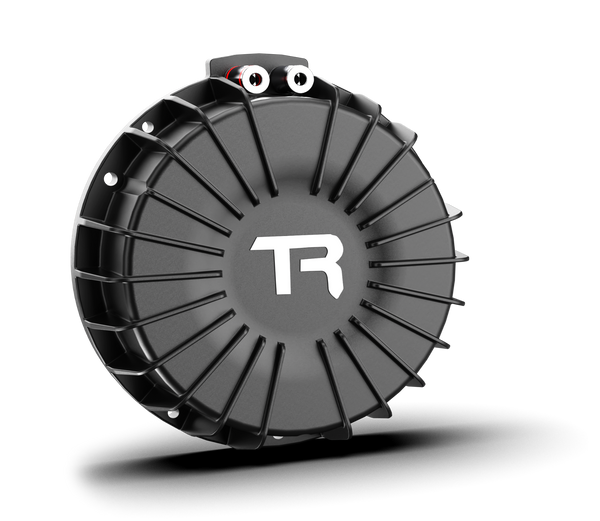

TR-BSA100 Bass Shaker
50W Nominal / 100W Maximum Power
The TR-BSA100 tactile transducer creates physical vibration rather than simply producing sound, transferring low-frequency effects directly through your simulator frame or mounting surface.
With a 20–120 Hz frequency range, it is ideal for reproducing deep engine tones, exhaust resonance, kerbs, bumps, impacts and other low-frequency simulator effects.

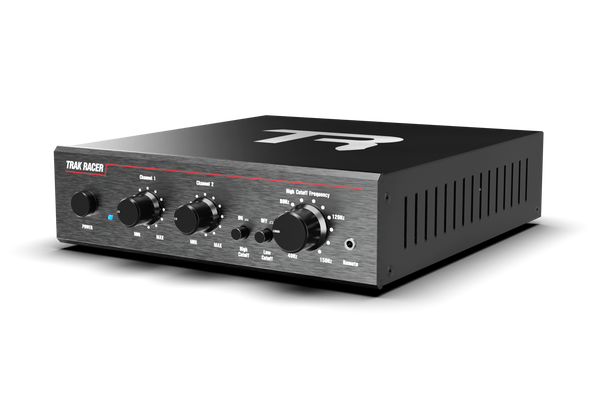

200W 2-Channel Class-D Amplifier
Powerful, Adjustable & Expandable
The included amplifier delivers 100W RMS @ 4Ω / 50W RMS @ 8Ω with two independent output channels and adjustable low-pass filtering.
Run the included 4Ω TR-BSA100 shaker from one channel and retain the second channel for future expansion with another compatible tactile transducer.

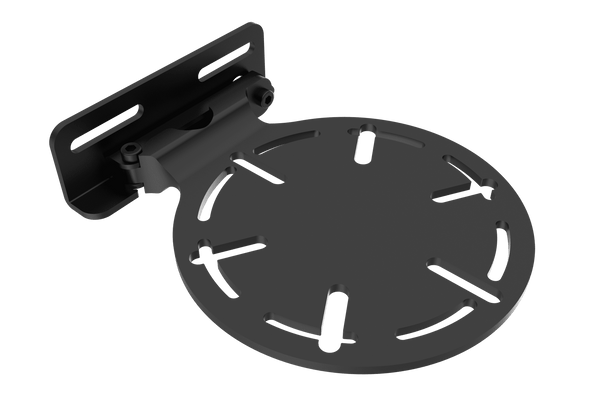

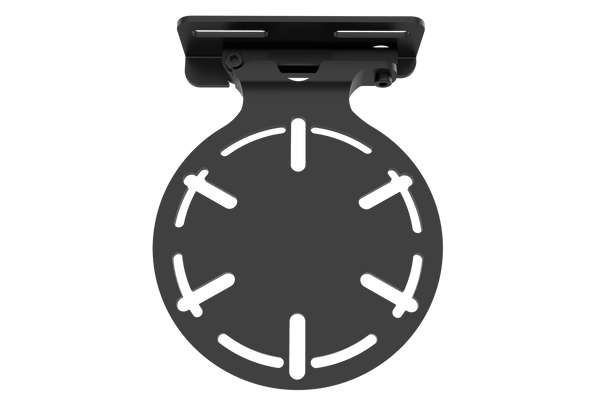

Universal Bass Shaker Mount Included
The included mounting plate provides a secure installation point for the TR-BSA100 bass shaker and is compatible with a wide range of Trak Racer cockpits and other simulator frames.
| Trak Racer Tube Frames |
RS6, TR8 PRO, TRX, Porsche 91XTR, Carbon Fibre TRX, TR5, TRF, Aston Martin AMR26, TR2, TR3, TR4, Hot Wheels HW5 / HW2 / HW3 |
| Trak Racer Extrusion Frames |
TR200, TRA, TR160, TR120, TR80S, TR40S, TRK |
| Other Simulator Frames |
Compatible with selected third-party rigs. Check dimensions and mounting points before ordering. |
If your simulator is not listed, please contact Trak Racer to confirm compatibility before ordering.
Why Trak Racer?
Trak Racer has been designing premium simulation hardware since 2008, with products developed for demanding sim racing, flight simulation and professional simulator environments.
Feel the engine. Feel the kerbs. Feel the road. Feel the car.
