Trak Racer Pro 200W 2-Channel Class-D Amplifier & 100W Bass Shaker Kit

Trak Racer Pro 200W 2-Channel Class-D Amplifier & 100W Bass Shaker Kit

$249.00

Trak Racer Pro 200W 2-Channel Class-D Amplifier & 100W Bass Shaker Kit

Feel the engine, kerbs, road surface and impacts — not just hear them.

The Trak Racer Pro Bass Shaker Kit is a high-power tactile feedback system designed for serious sim racing, flight simulation and gaming setups. Combining a 200W 2-channel Class-D amplifier with the powerful TR-BSA100 tactile transducer, it converts low-frequency effects into physical vibration throughout your simulator.

Mount the bass shaker beneath your seat, directly to your simulator frame or to a compatible Trak Racer bass shaker mount and physically feel engine RPM, exhaust vibration, kerbs, bumps, wheel slip, gear changes, runway vibration, turbulence, impacts and other low-frequency effects.

Unlike conventional speakers that primarily move air, a tactile transducer moves mass to transmit vibration directly through your simulator. The result is powerful, focused physical feedback without needing extreme audio volume.

High-Power Tactile Feedback For Serious Simulation
Feel More Of The Car
Sim Racing
Add physical feedback to your cockpit
  • Engine RPM and exhaust vibration
  • Kerbs and road texture
  • Bumps and impacts
  • Wheel slip and traction effects
  • Gear changes and drivetrain feedback
Flight Simulation
Bring aircraft effects into the cockpit
  • Engine and propeller vibration
  • Runway rumble
  • Touchdown impacts
  • Turbulence effects
  • Low-frequency aircraft feedback
Gaming & Media
Feel low-frequency effects
  • Explosions and impacts
  • Gunfire and recoil effects
  • Environmental bass
  • Music and low-frequency audio

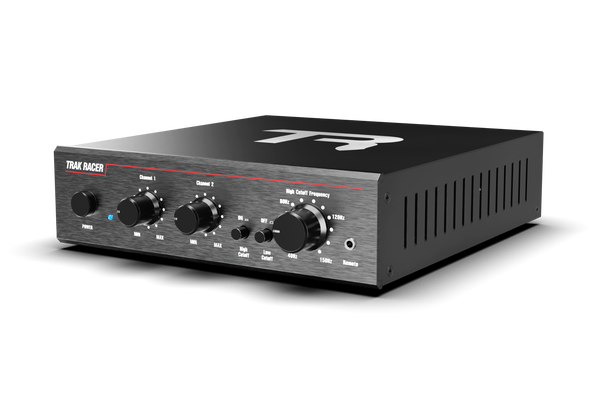

200W 2-Channel Class-D Amplifier
Powerful. Adjustable. Expandable.

The Pro amplifier provides two independent output channels, allowing you to run the included bass shaker now and add a second compatible shaker later for an even more immersive setup.

With adjustable filtering, independent channel volume control and efficient Class-D amplification, you can tune the strength and frequency range of the tactile effects to suit your simulator and mounting position.

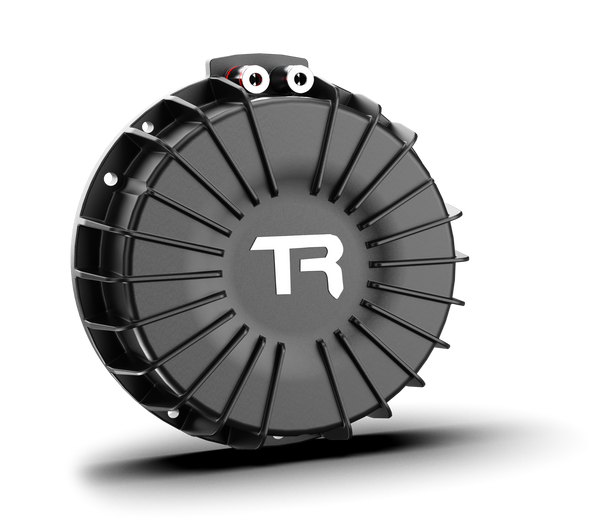

TR-BSA100 Bass Shaker
50W Nominal / 100W Maximum Power

The TR-BSA100 low-frequency tactile transducer is designed to create powerful physical vibration across the simulator rather than simply producing sound.

Its 20–120 Hz operating range makes it ideally suited to reproducing deep engine frequencies, exhaust resonance, road impacts, kerbs and other low-frequency effects.

The underside incorporates vibration-dampening material to help keep the tactile energy focused through the mounting surface.

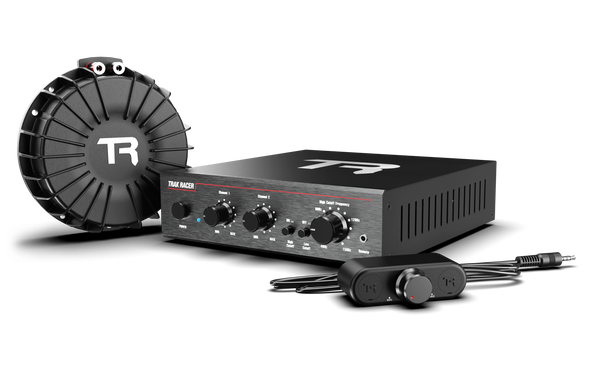

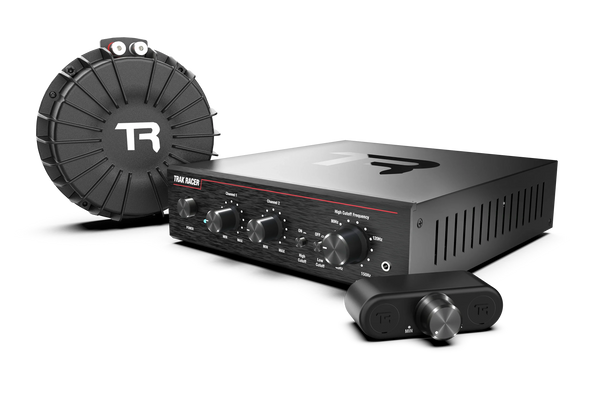

What's Included
  • 1 x TR-BSA100 Bass Shaker / Tactile Transducer
  • 1 x 200W 2-Channel Class-D Amplifier

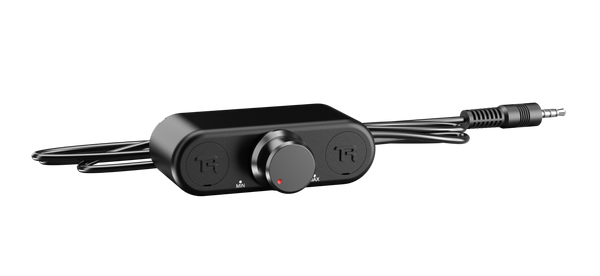

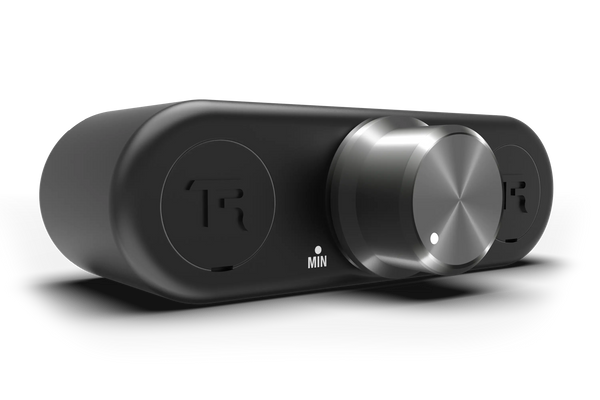

  • 1 x Wired Remote Control
  • 2m / 6.6ft 16-Gauge Speaker Wire
  • RCA / 3.5mm Audio Connection Cables

Expandable: Add a second compatible bass shaker to take advantage of the amplifier's dual-channel output.

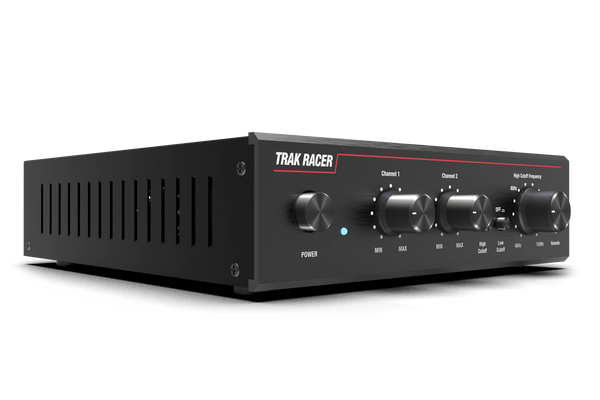

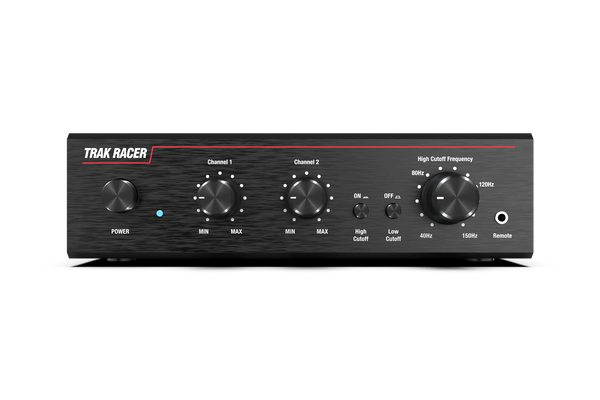

Front Panel Controls
  • Power ON/OFF switch
  • Power indicator
  • Channel 1 independent volume
  • Channel 2 independent volume
  • High-cut / low-pass filter control
  • Low-cut / high-pass filter control
  • Frequency adjustment
  • 3.5mm wired remote connection

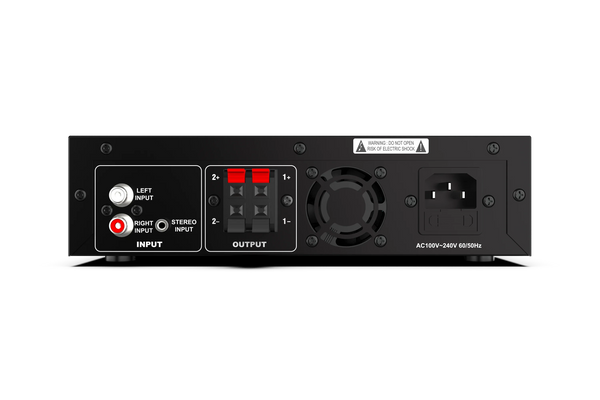

Rear Connections
  • Left-channel RCA input
  • Right-channel RCA input
  • 3.5mm stereo input
  • Speaker output channels 1 & 2
  • 100–240V AC power input
Specifications
200W 2-Channel Class-D Amplifier
Amplifier class Class-D
Output channels 2
Input channels 2
Audio inputs RCA + 3.5mm
Output @ 4Ω 100W RMS
Output @ 8Ω 50W RMS
Input sensitivity 250 mV
Frequency response 30–200 Hz ±3 dB
Variable low-pass adjustment 50–200 Hz
Total harmonic distortion 1% stereo / 0.05% mono
Signal-to-noise ratio 95 dB @ 100 Hz
Power requirements 110–240V AC
Maximum power consumption 313W
Standby power 10W
Auto turn-on sensitivity 10 mV
TR-BSA100 Bass Shaker
Product model TR-BSA100
Type Low-Frequency Tactile Transducer
Dimensions Ø155 × 51 mm
Impedance 4Ω
Nominal power 50W
Maximum power 100W
Frequency range 20–120 Hz
Weight 1.25 kg
Why Trak Racer?

Trak Racer has been designing simulation hardware since 2008 and works with leading names across motorsport, automotive and aviation.

Feel the engine. Feel the kerbs. Feel the road. Feel the car.
