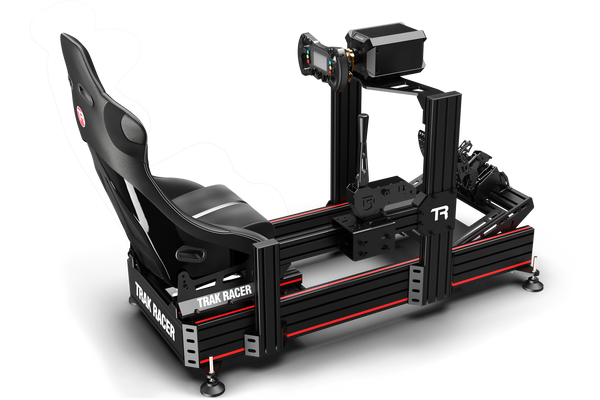

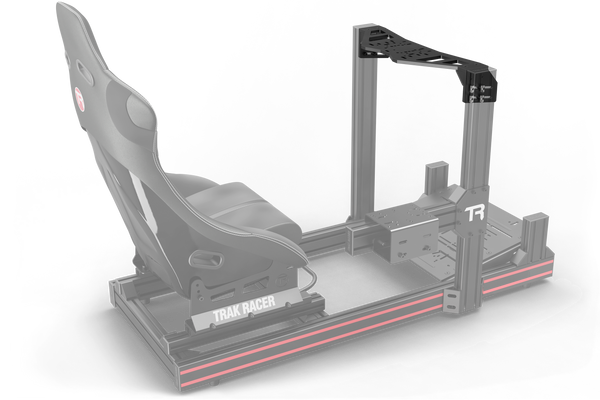

Universal Adjustable Wheel Plate for Sim Racing Cockpits
Upgrade your racing simulator with a strong and highly adjustable wheel plate engineered for precise positioning, dependable rigidity and broad wheelbase compatibility.
The Trak Racer Universal Wheel Plate provides forward and backward sliding adjustment, vertical height adjustment and wheel angle adjustment, allowing you to create a comfortable and realistic driving position for GT racing, Formula racing, rally, drifting, truck simulation and general sim racing.
Compatible Racing Simulators

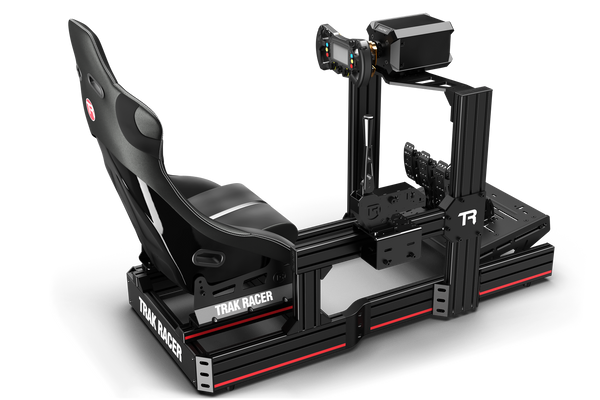

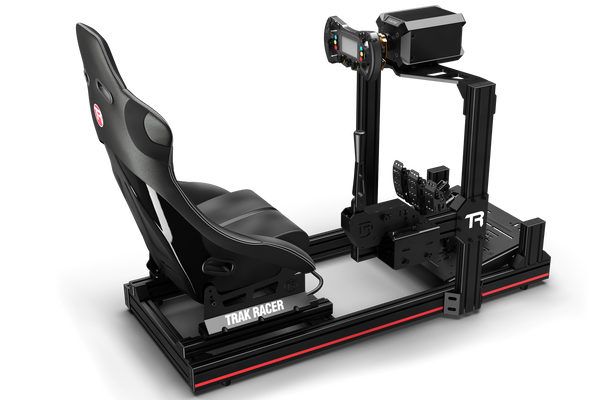

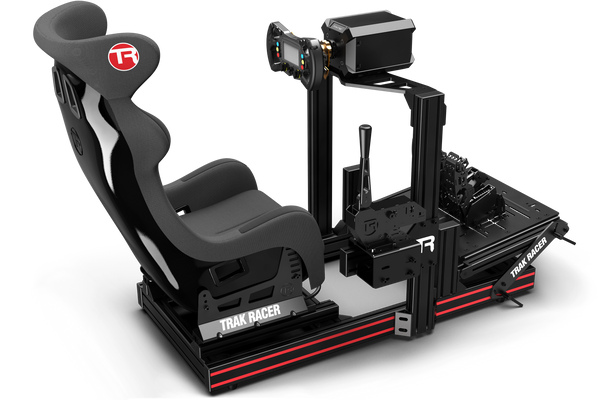

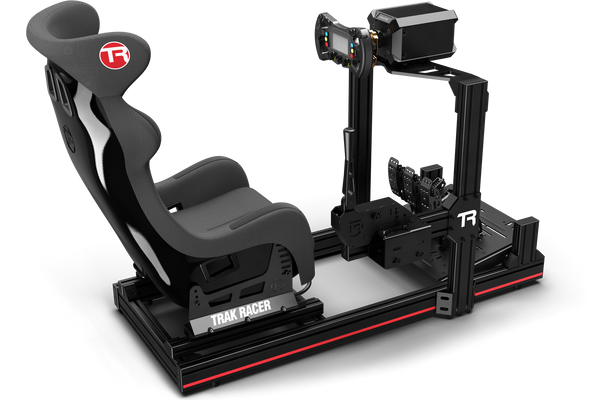

This wheel plate fits the full range of Trak Racer extrusion frames, and is also compatible with most other branded extrusion rigs — check the product dimensions in this description before ordering.
TR200
TRA
TR160
TR120
TR80S
TR40S
TRK
Also compatible with other branded extrusion rigs — refer to the product dimensions in this description before ordering. If your product is not listed, please contact Trak Racer to confirm compatibility.
Full Position Adjustment

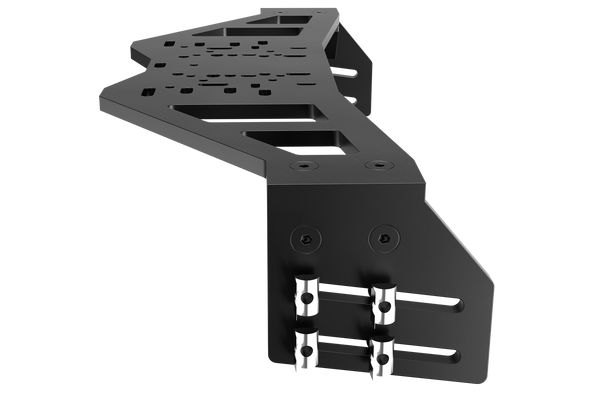

Slide the wheel mount forward or backward, adjust its height and change the wheel angle to suit different drivers, seats and racing disciplines.
10 mm (0.39 inches) Carbon Steel

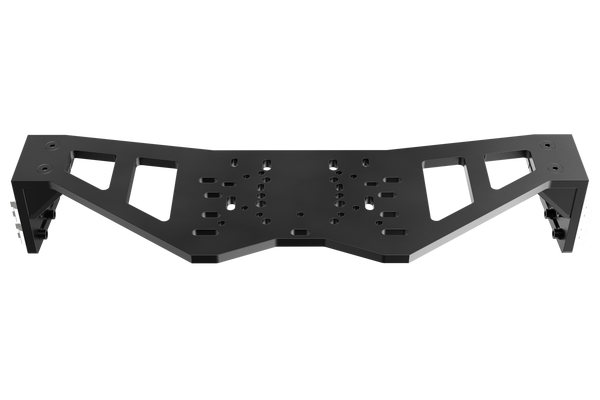

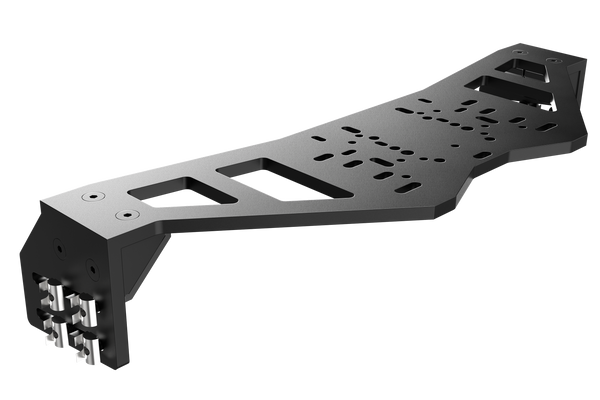

Manufactured from heavy-duty 10 mm (0.39 inches) laser-cut carbon steel for excellent strength and resistance to flex under force-feedback loads.
Broad Wheelbase Support
Supports a wide range of belt-driven, gear-driven and direct-drive racing wheelbases from leading sim racing manufacturers.
Profile Rig Compatible
Designed for Trak Racer extruded aluminium profile cockpits and suitable DIY aluminium profile simulator builds.
Product Specifications
Product TypeUniversal adjustable sim racing wheel plate
Material10 mm (0.39 inches) laser-cut carbon steel

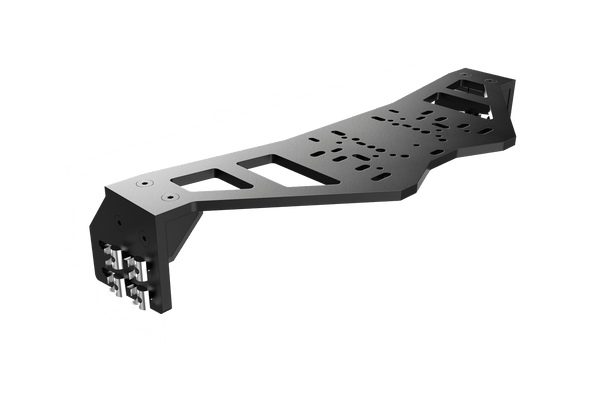

Mount Width580 mm / 22.83 inches
AdjustmentForward, backward, height and angle adjustment
Cockpit CompatibilityTrak Racer aluminium profile rigs and compatible DIY builds
Warranty5-year warranty
A Stronger and More Adjustable Sim Racing Wheel Mount
Correct steering wheel placement is important for driving comfort, control and consistency. This adjustable wheel deck helps position the wheelbase at the correct distance, height and angle for the driver, reducing the need to compromise the seat or pedal position.
Its 10 mm (0.39 inches) carbon-steel construction makes it suitable for powerful direct-drive wheelbases as well as popular entry-level and mid-range racing wheels. The universal mounting pattern also makes it a practical upgrade for multi-driver simulator setups, commercial simulation centres and home racing cockpits that may use different wheelbase brands over time.
Universal Wheel Plate Compatibility
The following racing wheelbases can be mounted directly or using the mounting method noted below. Always confirm the mounting-hole pattern of your specific wheelbase revision before installation.
Asetek
Initium 10 Nm, La Prima 12 Nm, Forte 18 Nm and Invicta 27 Nm
Mounting: Requires the TR-APDD adapter.
CAMMUS
C5, C12 and DDWB 15 Nm
CONSPIT
Ares (all models)
Fanatec
CSL Elite, ClubSport, ClubSport DD, ClubSport DD+, Podium DD, Podium DD1, Podium DD2, CSL DD and GT DD Pro
HORI
Force Feedback Racing Wheel DLX
Logitech
G25, G27, G29, G920, G923, G PRO and RS50
MOZA
R3, R5, R5 Pro, R9, R9 V3, R12, R12 V2, R16, R16 Ultra, R16S Ultra, R21, R21 Ultra and R25 Ultra
Mounting: Can also be fitted using a MOZA front mounting plate.
Nacon / REVOSIM
RS Lite 3.2 Nm, RS Initiale 6 Nm and RS Pure 10 Nm
PXN
VD4, VD6, VD10, V12, V12 Pro, V12 Lite, V10 Pro, V10 Ultra, S16 and S23
SIMAGIC
Alpha Mini, Alpha, Alpha Ultimate, Alpha EVO, Alpha EVO Sport, Alpha EVO Pro and Alpha EVO Ultra
Thermaltake
G6, G15 and G15x
Thrustmaster
T80, T128, T150, T248, T248R, T300, T500, T598, T818, TS-PC, TS-XW, TX, TMX, T-GT and T-GT II
Turtle Beach
VelocityOne Race and VelocityOne Race KD3
Wheelbases Requiring an Additional Direct Drive Mount
The following direct-drive wheelbases require a compatible Trak Racer Direct Drive Mount or another suitable mounting bracket.
Simucube
Simucube 3 Sport, Simucube 3 Pro, Simucube 3 Ultimate, Simucube 2 Sport, Simucube 2 Pro and Simucube 2 Ultimate.
Simagic
Alpha Mini, Alpha and Alpha Ultimate when using the applicable direct-drive mounting configuration.
VNM Simulation
Direct Drive Elite, Direct Drive Premier, Direct Drive Supreme and Direct Drive Xtreme.
VRS
DirectForce Pro 15Nm and DirectForce Pro 20Nm.
Immsource
ET3 and ET5 direct-drive wheelbases.
Leo Bodnar
SimSteering 2 force-feedback system.
Sim-Lab
DDX26 TorqueSync and DDX39 TorqueSync.
SimXperience
AccuForce Pro V2.
Flight Simulation and Heavy Equipment Compatibility
In addition to sim racing wheelbases, the universal plate may support selected flight simulator yokes, flight controls and heavy equipment simulator controls.
Flight Sim Yoke – Yoko Neo
Logitech Heavy Equipment controls
Logitech Flight Yoke System using its clamp
Turtle Beach VelocityOne Flight
Logitech Flight Switch, Multi and Instrument Panels
Brunner CLS-E MK II Yoke
Compatibility Notice
Wheelbase designs and mounting patterns can change between product generations. If your racing wheelbase, flight control, simulator frame or accessory is not listed, contact Trak Racer before ordering to confirm compatibility and whether additional mounting hardware is required.
Suitable for Home, Professional and Commercial Simulators
This adjustable simulator wheel mount is suitable for home sim racers, esports competitors, professional driver training, commercial simulator centres, event simulators, gaming venues and product demonstration systems.
It can be used as part of a dedicated GT simulator, Formula simulator, rally cockpit, drifting setup, truck simulator, flight simulator or multi-purpose aluminium profile simulation rig.
5-Year Warranty
This Trak Racer wheel plate is supported by a 5-year warranty, providing additional confidence for home, professional and commercial simulator installations.
Engineered by Trak Racer: Simulation Experience Since 2008
Founded in 2008, Trak Racer has more than a decade and a half of experience developing sim racing cockpits, racing simulator accessories, flight simulation equipment and professional-grade simulation solutions.
Trak Racer products are used by sim racers, professional drivers, pilots, esports competitors, simulation centres, gaming venues, event operators and commercial organisations around the world.
Trak Racer has built partnerships and collaborations with globally recognised motorsport, automotive, entertainment and aviation organisations, including the Alpine Formula One Team, Aston Martin Formula One Team, Porsche, Hot Wheels and Airbus Aircraft.
This industry experience helps Trak Racer develop strong, adjustable and widely compatible simulator hardware designed for realistic performance, long-term reliability and future equipment upgrades.
