Universal Pedal Bracket System for Inverted, Formula & GT Hybrid Pedals

Regular price $229.00

Inverted / Formula / GT Pedal Mount

Adjustable Inverted / Formula / GT Position Pedal Mounting System

Trak Racer is the Official Racing Simulator of the Alpine F1 Team and Official Flight Simulator of Airbus Aircraft. The Trak Racer Inverted Pedal Mount Set is another innovation by Trak Racer, including a footrest and a huge amount of angle adjustment on the side brackets — for Trak Racer and other extruded aluminium sim rigs.

Since 2008, Trak Racer has engineered sim racing hardware to motorsport-grade standards, forming official partnerships with the Alpine F1 Team, Aston Martin Aramco F1 Team, Porsche, Hot Wheels, and Airbus Aircraft.

Compatibility: Suitable for any aluminium profile with an 8mm slot. Designed for Trak Racer cockpits with 500mm spacing for pedals (between the inside of chassis profiles, left and right), as well as other extruded aluminium rigs 500mm wide internally.

Adjustable Pedal Mount Features

Unique Bracket Design Patent pending — a genuinely new approach to inverted pedal mounting.
Fully Adjustable Angle, height, and slide adjustment on both side brackets.
Thick Carbon Steel Construction No-flex build quality for consistent, precise pedal feel under hard braking.

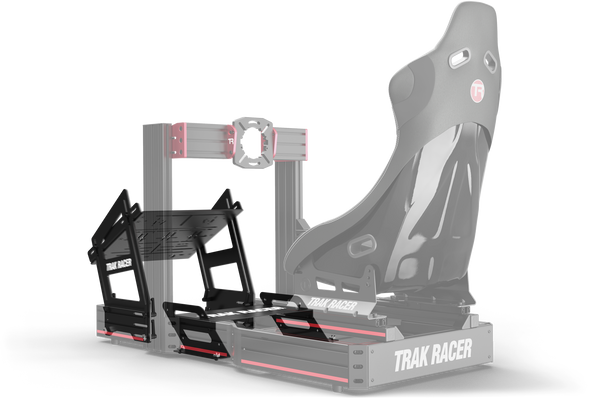

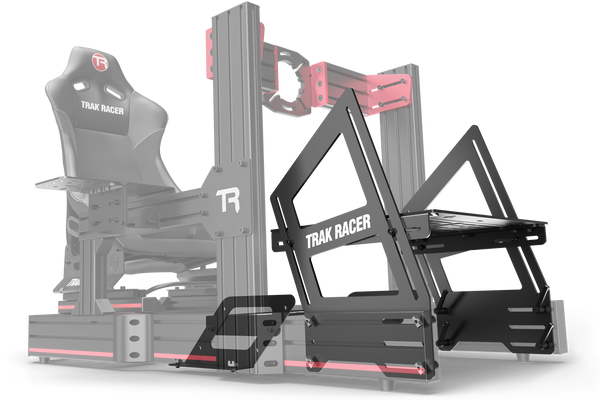

Inside-Chassis Mounting Clever design mounts inside the chassis for maximum height and angle adjustment range.

What's Included

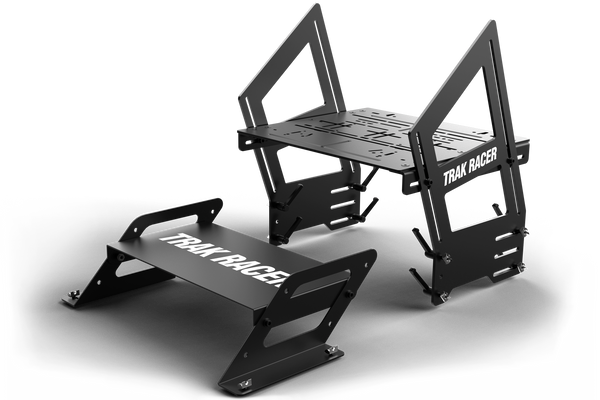

Includes the pedal plate and all mounting screws/T-nuts needed to mount both below the profile (footrest) and above (plate brackets). The brackets are made from thick carbon steel and can be angle adjusted and moved forwards and backward.

Compatibility

Compatible Racing Simulator Rigs

Rig Type Compatible Models
Trak Racer Extrusion Frames TR200, TR160, TR120, TR80S, TR40S, TRK

Also compatible with other branded extrusion rigs — refer to the product dimensions in this description before ordering. If your rig isn't listed, please contact Trak Racer to confirm compatibility.

Wide Pedal Compatibility

This inverted pedal mounting system supports a wide range of pedal sets across many leading sim racing brands:

Brand Product / Variant
Trak Racer Loadcell Pro Pedals
3DRAP Ngasa Pedals
Asetek La Prima, Forte, Invicta, Invicta T.H.O.R.P. II, Initium, Forte S-Series, Invicta S-Series, S-Series T.H.O.R.P. II and Pagani Huayra R Pedals
AW Prime Pedal Set
BJ Sim Racing Steel Series and 1,000 psi Hydraulic Pedals
CAMMUS LC100, CP5, LC200 and LC100 V4 Pedals
CONSPIT CPP, CPP Lite, CPP Apex and CPP Evo Pedals
Cube Controls SP01 Pedals
DC Sim Racing DC3, DC2 EVO, DC3 EVO and DC3 RS Pedals
Fanatec CSL Elite, CSL, ClubSport V1, ClubSport V2, ClubSport V3, ClubSport V4 and Podium Pedals
FATBLACKCAT PurrPRO Formula and PurrPRO GT Pedals
Ghost Sim Racing Phantom Pro Pedals
Heusinkveld Ultimate, Ultimate+, Sprint and Pro Pedals
HORI DLX Pedals
HPP PRX 3P and JBV 2/3 Pedal Systems
JCL Hydraulic Pedals
Logitech G25, G27, G29, G920, G923, G PRO, RS and RS SE Pedals
MECA Cup 1-2, Cup 1-3 and Cup 1 Evo Pedals (Hydraulic and LC); clutch and base plate
MOZA CRP, CRP2, SRP2, SR-P Lite, SR-P Lite2 and Booster ActivePedal
Nacon / REVOSIM RS Pure Pedals
OBP Pro Race V2 Pedal System
Protosimtech PT2 Pedals
PXN Vector X and PD HM Pedals
Quaife Throttle and Brake Pedals
Racewerk S1 and S1.5 Pedals
Ricmotech RealGear GTPRO3 Pedals
Sim Coaches P1-3 Pedals
Sim-Lab XP1 Pedals
SIMAGIC P2000, P1000 (all variants), P500, P700 and P-Active Pedals
Simforge Mark-1 and Mark-2 Pedals
Simgrade VX, VX-PRO, R7 and R7 Spec C Pedals
SimJack Pro and Ultimate UT Pedals
Simnet Racing SP Pro and SP Evo Pedals
SIMSONN Plus X, Pro X, Pro X Ultra and Plus X V2 Pedals
Simtag PT1 Modular Pedals
Simtrecs ProPedal GT and ProPedal GT MKII
Simucube Co-Pedal, Passive Throttle/Clutch, ActivePedal Sport, ActivePedal Pro and ActivePedal Ultimate
Simworx Pro Series Pedals
SRP GT, GT-R, Formula and Formula-R Pedals
Thera Pedals
Thermaltake G6 and G15 Pedals
Thrustmaster T-LCM, T3PA, GT Edition, T3PGT, T3PA Pro Add-On, T500, T150, T3PM, T2PM, T2PA, Raceline LTE, Raceline III and Raceline III LC Pedals
Turtle Beach VelocityOne Race and VelocityOne Race KD3 Pedals
Velazquez Engineering PRO+ Hydraulic Pedals
Venym ATRAX Black Pedals
VNM V1 and Lite Pedals
VRS DirectForce Pro Pedals
Wave Impetus Pedals
XPT Loadcell Pedal Set

Pedal Accessory Compatibility

Brand Product / Variant
Trak Racer Universal Inverted Pedal System
Simucube Baseplate
MOZA CRP2 Inversion Kit
Simagic C-P1000 Clutch
Heusinkveld Rest Pedal, Sprint Baseplate, Ultimate Baseplate
Simsonn Pro Plus Baseplate
Simgrade Pedal Base Plate
VNM Pedals Heel Rest
Simtrecs ProPedal Baseplate

Also: Flight / Heavy Equipment

Brand Product / Variant
Logitech Flight Rudder Pedals, Heavy Equipment
RUDDO+ Flight Sim Rudder Pedals (2 holes only, on pedal pre-drilled plate)
Thrustmaster TPR (Pendular Rudder), T.Flight Rudder Pedals
Virpil Ace

If your product is not listed, please contact Trak Racer to confirm compatibility.

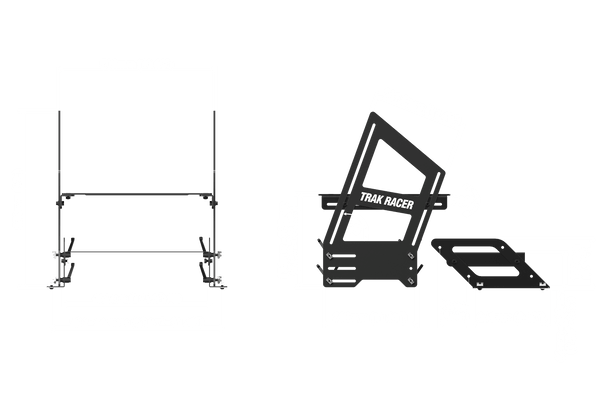

Specifications

  • DesignPatent-Pending Bracket
  • MaterialThick Carbon Steel
  • Slot FitmentAny 8mm Slotted Aluminium Profile
  • Chassis Spacing500mm Internal (Left/Right Profile Spacing)
  • AdjustmentAngle, Height & Slide
  • IncludedPedal Plate, Footrest, All Mounting Screws/T-Nuts

Fitment Notes

Designed for Trak Racer cockpits and other extruded aluminium rigs with 500mm internal spacing between chassis profiles. Mounts inside the chassis for maximum height and angle adjustment range — confirm your rig's internal spacing before ordering.

5-Year Warranty Backed by Trak Racer's industry-leading coverage.
