Trak Racer 40W 4-Channel Class-D Amplifier with 2 x 10W Bass Shakers & Rig Mounts

Trak Racer 40W 4-Channel Class-D Amplifier with 2 x 10W Bass Shakers & Rig Mounts

$199.00

Trak Racer 40W 4-Channel Amplifier with 2 x 10W Bass Shakers & Rig Mounts

Transform your simulator with precise, localised tactile feedback you can actually feel through your controls and cockpit.

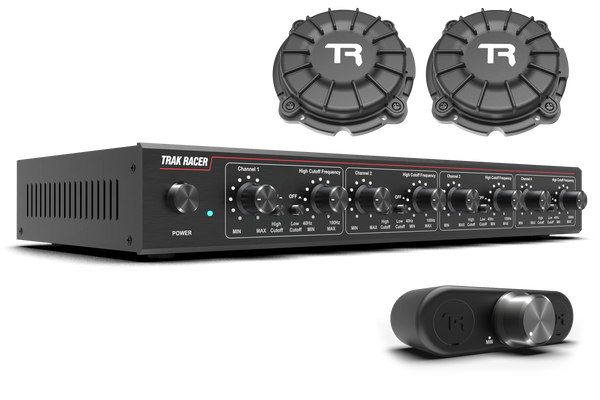

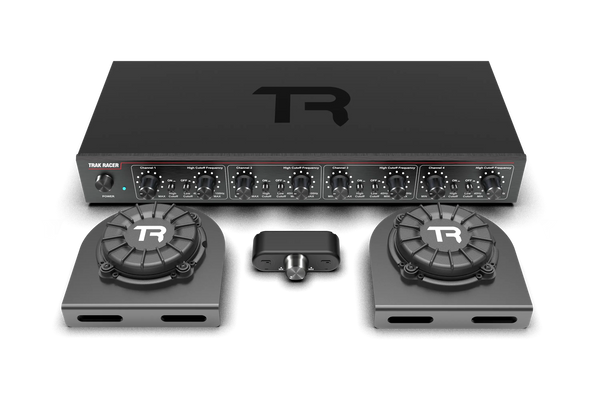

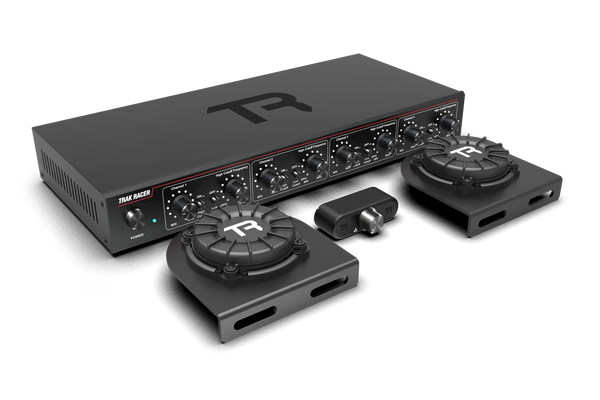

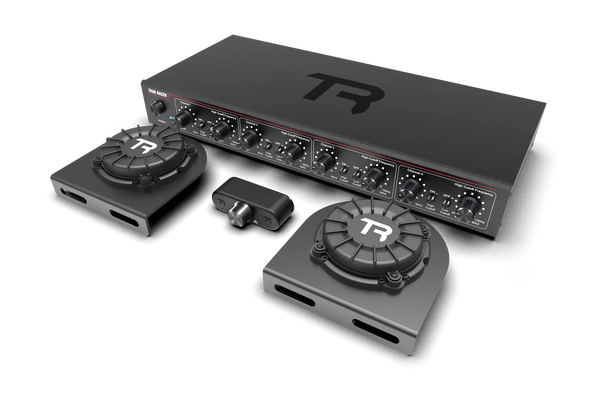

The Trak Racer 4-Channel 40W Class-D Amplifier and Bass Shaker Kit combines a compact 4-channel amplifier with two 10W low-frequency bass shakers and mounting hardware, giving you a powerful and expandable haptic feedback solution for your sim racing setup.

Mount the bass shakers directly to your pedals, shifter, handbrake or simulator frame and feel effects including ABS activation, wheel lock-up, traction loss, kerbs, road texture, engine RPM, gear changes and more.

Unlike conventional audio speakers, bass shakers convert low-frequency signals into physical vibration. This allows feedback to be delivered directly through the simulator hardware rather than relying only on sound.

With four independent amplifier channels, the system also gives you room to expand your tactile setup with additional compatible bass shakers.

Powerful, Adjustable Tactile Feedback With Trak Racer Device Manager
TDM Software
Trak Racer
Device Manager
Control Your Trak Racer Electronics From One Platform
Trak Racer Device Manager (TDM) allows you to configure and optimise compatible Trak Racer electronics from one platform, including tactile feedback hardware, Direct Drive wheelbases, pedals, wheels, shifters, handbrakes and more.
Download TDM
Trak Racer Device Manager Bass Shaker Control
Feel More. React Faster.
Pedal Feedback
Critical information directly through your feet

In a real race car, important information is transmitted through the pedals. Adding a bass shaker to your pedal assembly can reproduce tactile cues such as:

  • ABS activation
  • Brake lock-up and threshold braking
  • Traction loss and wheelspin
  • Kerbs, bumps and road texture

This localised feedback can make vehicle behaviour easier to identify without relying solely on visual and audio cues.

Shifter Feedback
Make every gear change feel more physical

Mount a 10W bass shaker near your shifter to add another layer of mechanical feedback to your simulator.

  • Gear-change vibration
  • Drivetrain feedback
  • Engine and RPM effects
  • Transmission and vehicle effects

The result is a more connected driving experience with tactile feedback directly where your hand interacts with the car.

Handbrake Feedback
Ideal for rally and drift simulation

Adding tactile feedback around the handbrake can increase immersion during rally and drift driving.

  • Rear-wheel slip effects
  • Gravel, dirt and tarmac surface feedback
  • Wheel-lock vibration
  • Vehicle impact and chassis effects

It adds physical feedback at the exact point you interact with the handbrake.

Why Add Tactile Feedback?
  • Localised feedback: feel effects directly through pedals, shifters, handbrakes or your simulator frame.
  • 4-channel amplifier: individually drive up to four compatible channels for an expandable haptic setup.
  • 40W total amplifier output: 10W RMS per channel at 8Ω.
  • Compact 10W bass shakers: designed for focused low-frequency tactile feedback.
  • Greater immersion: reproduce engine, ABS, traction, road surface, kerb and impact effects.
  • Versatile mounting: suitable for a wide range of simulator control and cockpit locations.
  • Class-D efficiency: compact amplifier design with efficient power delivery.
More Than Sim Racing

Although designed with simulation in mind, low-frequency tactile feedback can add physical immersion across a wide range of applications including sim racing, driving simulation, flight simulation, FPS gaming and music.

Depending on your software and configuration, tactile effects can reproduce sensations such as engine rumble, kerbs, bumps, runway vibration, turbulence, gunfire, explosions, recoil and low-frequency bass.

Specifications

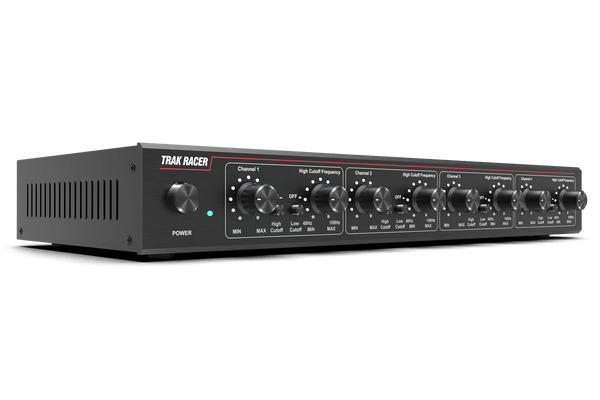

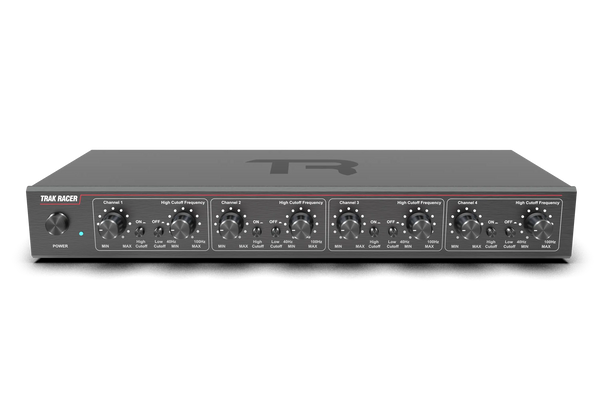

40W Trak Racer 4-Channel Class-D Amplifier
Model BSA4A
Amplifier type Class-D
Output channels 4

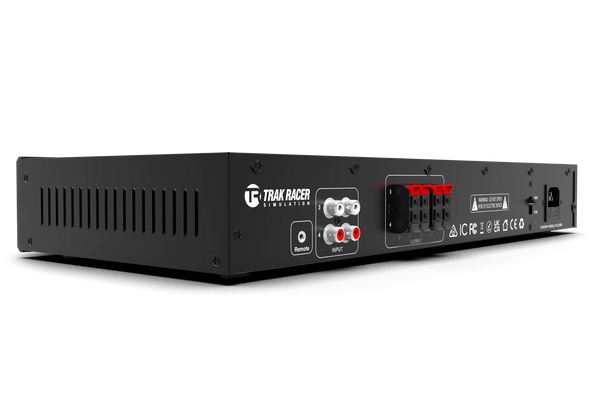

Input channels 4 × RCA
Total rated output 40W RMS
Output power @ 8Ω 10W RMS per channel
Input sensitivity 350 mV
Frequency response 30–100 Hz ±3 dB
Low-pass adjustment 40–100 Hz
THD (mono) 0.05%
Signal-to-noise ratio 95 dB
Power requirements 115–240V AC
Maximum consumption 80W

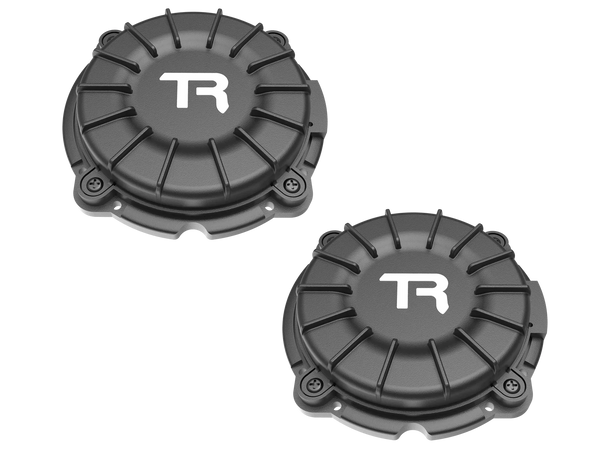

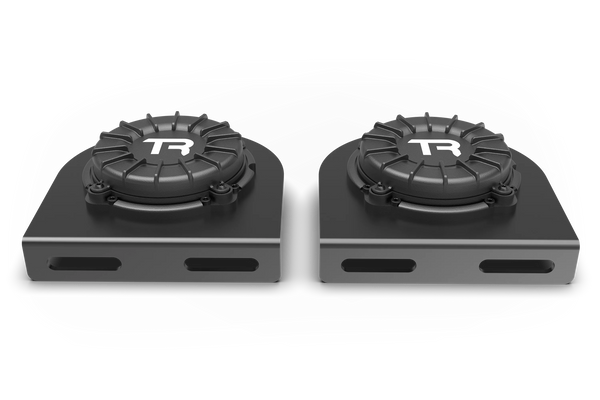

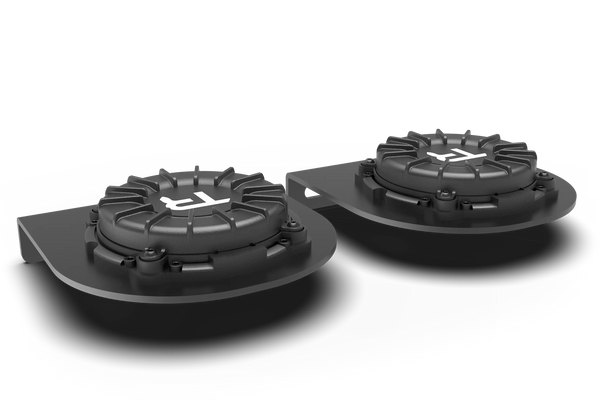

10W Trak Racer Bass Shaker
Product model TR-BSA10
Product type Bass shaker / tactile transducer
Nominal power 10W
Dimensions 98 × 98 × 31 mm
AC impedance 8Ω ±10%
DC resistance 7.2Ω ±3%
Resonant frequency 33 Hz ±10%
Frequency range 20–200 Hz
Buzz test 8V, 20–200 Hz
Weight 0.35 kg

Ideal For

  • GT, Formula, Rally and Drift sim racing
  • Pedal-mounted ABS and traction feedback
  • Shifter and handbrake tactile feedback
  • Simulator cockpit vibration effects
  • Flight simulation
  • Gaming and low-frequency audio effects
  • Users wanting an expandable multi-channel tactile system

Feel the engine. Feel the kerbs. Feel the road. Feel the car.

Trak Racer has been designing simulation hardware since 2008 and is the Official Simulator Supplier of Alpine F1 Team and a partner of Airbus Aircraft.
