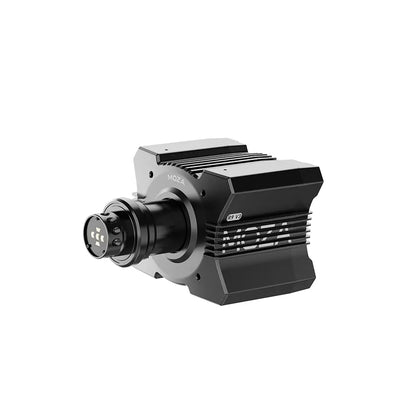

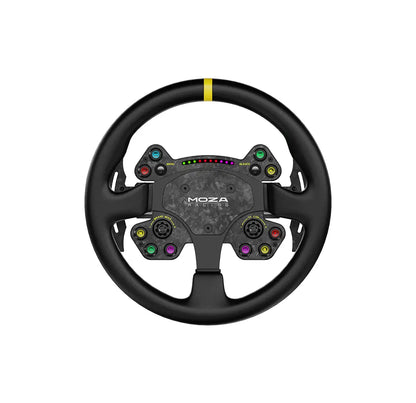

The ultimate racing package for serious enthusiasts. The MOZA R9 wheelbase offers exceptional 9 Nm of torque, aviation-grade aluminum construction, wireless power, and smart temperature control. Pair it with the RS V2 steering wheel, featuring forged carbon fiber and aluminum build, ergonomic design, and LED RGB rev light for an unparalleled racing experience. This bundle combines power, precision, and style for the ultimate sim racing setup.

Specification

Platform: PC
FFB Drive System: Direct Drive
Max Wheel Rotation: Limitless
Peak Torque: 9 N·m
Peak Power: 180W
Input Voltage: 110V~220V AC → 36V DC
USB Refresh Rate: 1000Hz
Wheel Base Indicator Light: Supported
App Functionality: Supported (MOZA Pit House & MOZA Mobile App)
Quick Release: MOZA Quick Release
Connection Ports: Starting Switch, Power Supply, Data, Emergency Stop Switch, Display Screen
Firmware Updating: Applicable
Temperature Control System: Intelligent Temperature Monitoring & Active Cooling
Encoder: 21-bit Magnetic Encoder (2,097,152 steps per revolution)
Motor Type: High-performance Servo Motor (18-Slot / 16-Pole Configuration)
Housing Material: Aviation Grade Aluminum Alloy
Color: Black
Mounting: 4-hole bottom mount; optional table clamp and side mounting supported
Table Clamp: Optional
Side Mounting: Optional
Emergency Stop Switch: Optional
Size (L x W x H): 240 × 157 × 124 mm
Accessories: User Manual, Warranty Card, Power Supply, USB Cable, Toolkit
