NLR GTElite Front and Side Mount Edition
Regular price $799.00
Build your own Elite Journey with the best-value aluminum profile cockpit, the Next Level Racing GTELite Front & Side Mount Edition. Specifically, the GTElite cockpit’s patent-pending design brings unparalleled rigidity and stability. This innovation sets a new price point, consequently making it the best mid-range aluminum profile cockpit on the market. With attention to detail and engineering as seen on our Elite series, the GTElite compared to mid-range cockpits in its class is more rigid, easier to assemble, and provides more inclusions, while providing a higher quality finish.
While constructed to suit the mid-range category with a “4080” profile, through advanced engineering and manufacturing, combined with unique components, fixtures, and reinforcements, the GTElite is the most rigid mid-range cockpit. Through this innovative process, the GTElite in some cases is stronger than the conventional “16040” racing cockpit seen on the market.
Particularly, with an extensive ecosystem in mind, the GTElite Lite is upgradable to be compatible with Next Level Racing® Motion Products and can be changed into a multi-position cockpit solution with the ready set kits*.
*Motion Kit and Formula Kit are available individually.
Leading Features
Conventional corner brackets are now things of the past. In contrast, the GTElite Cockpit utilizes an innovative approach with its 8mm thick Carbon Steel Reinforced Upright Direct Mounting plates. As a result, the GTElite boasts stronger support and connection between the vertical uprights and the base of the chassis. Furthermore, to eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are strategically used throughout the build. Additionally, through bolts are employed in areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the support between the structural parts of the cockpit. Similarly, the strength continues with precision machined holes to bolt the base of the profile directly for a more rigid foundation.
Included in the GTElite Front & Side Mount Edition are Next Level Racing’s bespoke Direct Drive mounting solution. Additionally, machine-folded and precision laser-cut parts make the Next Level Racing GTElite Front & Side Mount Cockpit a premium aluminum option for racers. This is particularly important for those who demand the ultimate in adjustment and strength from their cockpit.

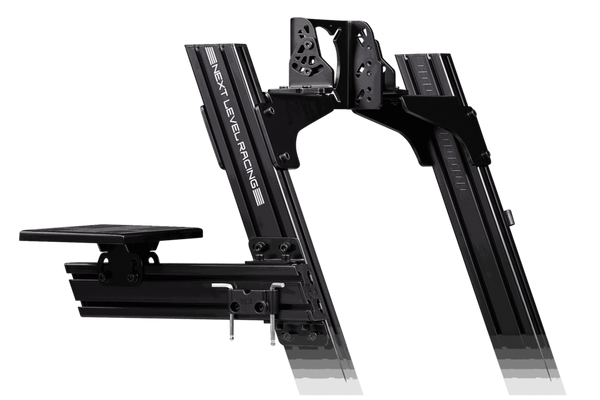

Furthermore, the 8mm thick Carbon Steel Side Mounts offer 70 degrees of tilt (40 degrees down, 30 degrees upward). As a result, this feature gives drivers the option to fine-tune their Elite cockpit for the perfect driving position. Notably, the GTElite Front & Side Mount Edition also includes 6mm Carbon Steel (machine folded & laser cut) “WINGS” and the 6mm Front Mount Bracket Option.
Moreover, the strength of these components is evident in the FEA (Finite Element Analysis) Tests. Particularly, these tests compare the innovative GTElite plate designs to other flat steel or aluminum designs commonly found in conventional cockpits on the market.
Pedal Deck – equivalent to 10.84mm steel or 15.83mm aluminum
Shifter Plate – equivalent to 18.51 steel or 29.18mm aluminum
Our custom Front & Side Mount works with the best Direct Drive wheelbase brands on the market, ensuring full compatibility with a wide range of systems. Initially, it includes compatibility with the Fanatec dd1/dd2 podium direct drive.
Additionally, it supports the Simucube 2 Pro, Simucube 2 Sport, and Simucube 2 Ultimate models.
Furthermore, the Simagic Alpha/M10 models are also compatible with our mount.
Moreover, it accommodates Mige 130 motors seamlessly.
The VRS Directforce Pro is another compatible system, adding to the versatility of our mount.
Also, the Kollmorgen akm 52-53-54 models, used in OSW and Leo Bodnar Simsteering systems, are fully compatible.
Plus, there are more models works with our custom mount, ensuring it meets a wide range of sim racing needs
The innovative Next Level Racing® Seat Sliding System has been designed and engineered, specifically to address and eliminate the issue of flex found in conventional seat sliders used in simulators. Moreover, the NLR ratchets are provided to easily slide your seat back and forth. This feature facilitates finding the desired position for a flex-free racing experience.
Additionally, the Next Level Racing® Seat Brackets are built from 4mm carbon steel. This construction provides the strength required for competitive racers. Furthermore, the new design offers a wide range of adjustments, supporting multiple seating positions with 55 adjustment combinations. Also, users have the option to use the included Universal seat brackets. As a result, these brackets provide height and angle adjustability for bottom-mounting seats, introducing a new range of adjustments for bottom-mounting seat users. This innovation allows for more fine-tuning, resulting in a more unique racing experience. Finally, the Next Level Racing® Elite Sim Racing Seats are highly recommended for use with the Elite range of cockpits. These seats have been specifically designed and optimized to meet the needs of elite sim racers
Equipping the user with all the gear needed for the most real sim racing experience, including:
- Firstly, premium anodizing quality and finish aluminum profile with custom NLR end caps for a sleek look.
- Additionally, laser-etched logos and line markings allow for easier and quicker adjustments.
- Moreover, a gear shifter and handbrake support plate are included for enhanced control.
- Also, the ButtKicker Gamer 2 Adaptor is available for an immersive audio experience.
- A flex-free seat slider system is integrated, for stability and comfort.
- Furthermore, a pedal slider system is in place for quicker distance adjustments, complete with easy alignment laser line guides.
- The package includes 4mm flex-free carbon steel seat brackets with 55 adjustment combinations for versatile positioning.
- Next Level Racing® Custom Feet with height-adjustable shock-absorption feet are also part of the setup for added stability.
- In addition, 6 x Next Level Racing® Custom Cable Clips are provided, holding up to 4 larger cables or 8 smaller gauged cables for organized cable management.
- There’s also a Next Level Racing® Tool Kit Holder to keep your tools handy, connected to the cockpit, along with a magnetic spirit level for precision alignment.
- Moreover, a taller aluminum profile for wheel mount uprights allows more leg room, for a wider range of users and driving positions.
- Lastly, a larger wheel deck allows the attachment of various accessories and peripherals for enhanced customization.
Equally important, designing custom components and using advanced manufacturing processes, including precision machined holes in the aluminum profile, will facilitate easier assembly and a more rigid connection as the profile bolts together. As a result, the improved design significantly reduces the hassles of aligning fiddly corner brackets, effectively making them a thing of the past. Combining the ease of assembly with the laser-etched line on the GTElite profile helps you to get racing quicker than any other aluminum cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport, providing a great user experience from the time the packaging is opened, completing the Elite experience.
The Next Level Racing® GTElite offers many upgrade options within the Elite series to meet the user’s evolving racing needs. For instance, with the purchase of the Next Level Racing® GTElite Motion Adaptor Kit*, the GTElite becomes compatible with Next Level Racing’s existing and future motion products. Moreover, the GTElite can transform into a Formula or Hybrid racing position cockpit. That is possible through the addition of the Next Level Racing GTElite Formula and Hybrid Pedal Upgrade Kit and the Next Level Racing Universal Seat Brackets*. Furthermore, with a growing ecosystem of accessories in the Elite series, users have the opportunity to create a full racing experience. Finally, they can do this by adding accessories like attachable Monitor Stands, keyboard and mouse trays, tablet mount holders, and VR holders.
*Items purchased separately
Product Features
- Dedicated GT cockpit with the most authentic and adaptable driving position
- Premium packaging including double boxing and molded foam for aluminum profiles and parts
- Pre-machined holes in aluminum profile for rigidity and ease of assembly
- Front & Side mount with 70 degrees of adjustability for Direct Drive wheelbases
- Taller aluminum profile for wheel mount uprights allowing for wider range of driving positions and users
- All the extras included such as NLR flex free seat slider system, seat brackets, height adjustable shock absorption feet, gear shifter and handbrake support plate, Buttkicker Gamer 2 Adapter, cable management clips, and tool kit holder
- Pedal position height, angle, and distance adjustable
- Rigid and highly adjustable mounting support included for your seat, wheel, pedals, shifter, handbrake
- Fully enclosed base frame for strength and aesthetics as well as one piece aluminum profiles
- Upgradable to be compatible with Next Level Racing Motion products and accessories
- Premium black anodized aluminum profile
- Compatible with all major brands of wheels, pedals, and shifters including Fanatec, SimXperience, and many more
