Focus Sim Racing Electronics Management Tray

Keep the electronics underneath your simulator clean, organized, and easy to access with the Focus Sim Racing Electronics Management Tray. Measuring 22.5" x 14 1/8", the tray creates a dedicated mounting area beneath your chassis for power supplies, power strips, USB hubs, amplifiers, motion controllers, and other sim racing electronics.

Instead of attaching components wherever they fit with zip ties, the Electronics Management Tray gives your build a purpose-built mounting surface with multiple attachment options and clean cable routing. The result is a more organized, serviceable, and professional installation.

Flexible Electronics Mounting

• Multi-slot mounting pattern supports Velcro straps, zip ties, and direct hardware mounting
• 5mm-wide slots allow compatible hardware to mount directly through the tray
• Ideal for mounting power supplies, power strips, USB hubs, amplifiers, motion electronics, and control boxes
• Flexible layout allows components to be positioned around your specific electronics configuration
• Components can be added, removed, or repositioned without drilling into the tray

Built for Clean Simulator Installs

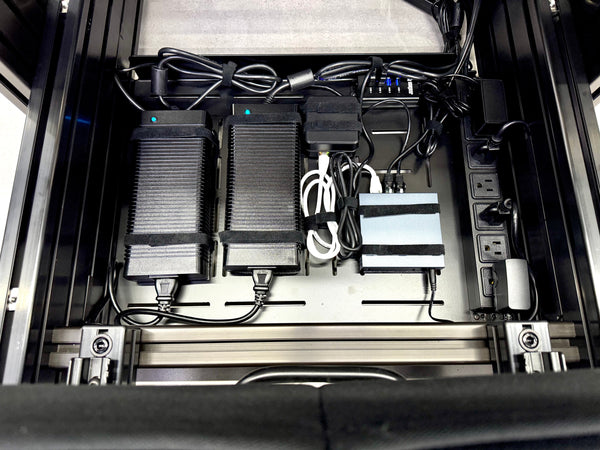

• Creates a dedicated electronics mounting zone underneath the chassis
• Helps keep power bricks, adapters, hubs, and control modules off the floor and out of sight
• Reduces exposed wiring and unnecessary cable runs around the simulator
• Can be positioned beneath the chassis or under the seat area depending on your build
• Ideal for more complex installations including motion systems, bass shakers, additional USB devices, and multiple power supplies
• Keeps the underside of the simulator looking as intentional as the rest of the build

Smart Design Details

• 1.5" side openings provide space for clean cable routing from the front and rear of the tray
• Open-slot design helps maintain airflow around mounted electronics
• Bent side walls increase rigidity while helping contain cables and components
• Low-profile design sits flush with the bottom of the chassis
• Designed to keep electronics accessible for maintenance, upgrades, and troubleshooting

Designed & Built In-House

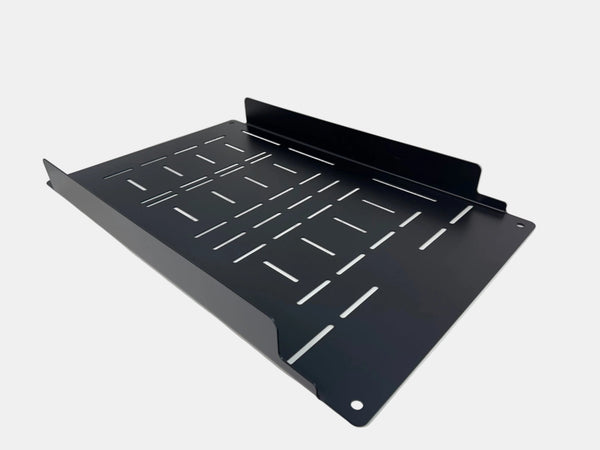

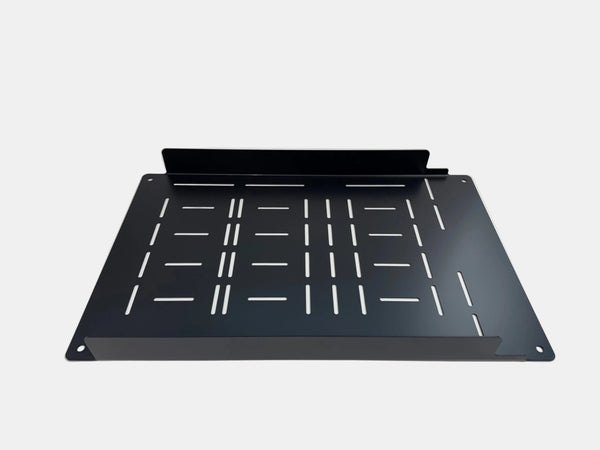

• 2mm laser-cut steel construction
• Precision-bent for additional rigidity
• Durable black powder-coated finish
• Designed, manufactured, and finished in-house by Focus Sim Racing

Fitment & Compatibility

• Designed for Focus Sim Racing aluminum profile chassis
• Mounts directly to the chassis extrusion using included M8 hardware and T-nuts
• Can be mounted beneath the Dropped Floor Pan or positioned under the seat area
• Can be used as a standalone electronics tray or as part of a complete floor and electronics management setup
• FSR One Twenty & FSR One Sixty: supports installation with both the Electronics Management Tray and Dropped Floor Pan
• FSR 80: supports either the Electronics Management Tray or Dropped Floor Pan individually, but not both together

Compatibility with Other Aluminum Profile Chassis:
The Electronics Management Tray may also fit aluminum profile rigs from other manufacturers. Focus Sim Racing chassis use a 580mm-wide lower chassis, placing the tray mounting locations at 540mm apart. If your chassis has compatible extrusion or mounting locations at 540mm spacing, the tray should be able to mount to your rig.

Because chassis dimensions and extrusion layouts vary between manufacturers, we recommend measuring the mounting location on your rig before ordering.

Specifications

• Overall Size: 22.5" x 14 1/8"
• Bolt Pattern: 21 5/16" x 12 3/4"
• Chassis Mounting Spacing: 540mm
• Slot Width: 5mm
• Cable Pass-Through Openings: 1.5"
• Material: 2mm steel
• Finish: Black powder coat
• Mounting Hardware: M8 hardware and T-nuts included

A high-end simulator should look finished from every angle. The Focus Sim Racing Electronics Management Tray gives power supplies, hubs, controllers, and wiring a proper place to live, turning the underside of your rig into a clean, organized, serviceable system.
