Focus Sim Racing Dropped Floor Pan

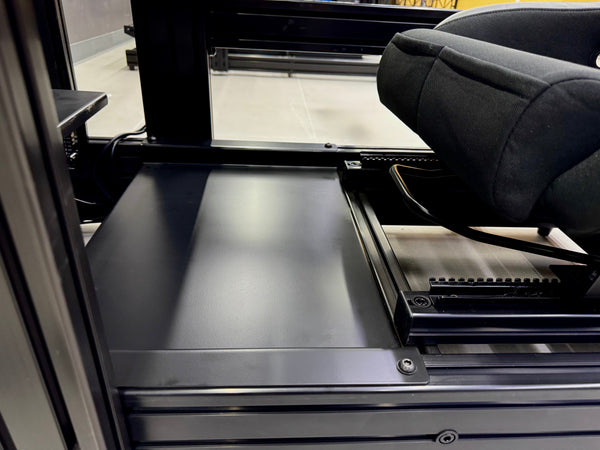

Give your simulator a more complete cockpit feel with the Focus Sim Racing Dropped Floor Pan. Measuring 22.5" x 14 1/8", the floor pan installs between the seat and pedal area to create a dedicated footwell while closing off the open space normally found between aluminum profile chassis rails.

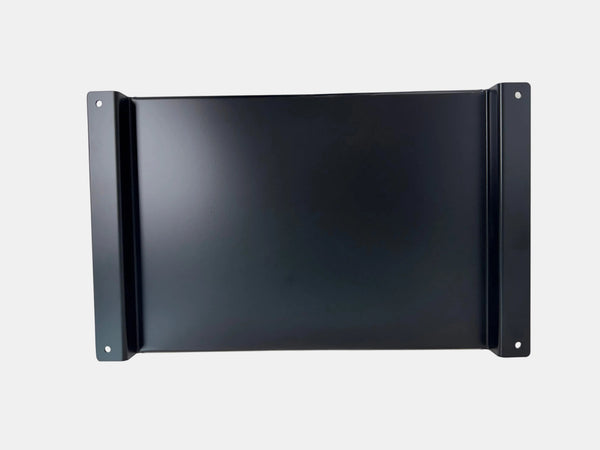

Unlike a simple flat floor plate, the Focus Dropped Floor Pan features a 1.25" recessed center section. This provides additional clearance for your feet and legs while maintaining clearance around common seat slider installations, creating a more comfortable and finished driving environment.

Purpose-Built Dropped Footwell

• 1.25" dropped center section creates additional foot and leg clearance
• Provides a more defined cockpit-style footwell between the seat and pedals
• Helps reduce the cramped feeling that can come from adding a flat panel directly across the chassis rails
• Seat slider compatible design provides additional clearance beneath the seat area
• Creates a solid surface for entering, exiting, and positioning your feet inside the simulator

Clean, Finished Cockpit

• Closes the open area between the chassis rails for a more complete and intentional cockpit
• Helps prevent feet, cables, tools, and other small items from falling through the chassis
• Helps conceal wiring and electronics routed underneath the simulator
• Creates a cleaner separation between the driver area and electronics underneath the rig
• Ideal for high-end builds where the appearance and finish of the complete simulator matter

Designed as Part of a Complete System

The Dropped Floor Pan is designed to work alongside the Focus Sim Racing Electronics Management Tray, creating separate areas for the driver and the electronics underneath the simulator.

• Floor Pan creates a finished driver footwell
• Electronics Management Tray provides a dedicated mounting area for power supplies, USB hubs, power strips, controllers, and wiring
• Together, the two components help transform the open underside of an aluminum profile rig into a cleaner, more organized system
• Especially useful for complex builds with motion, bass shakers, multiple power supplies, and additional electronics

FSR One Twenty & FSR One Sixty: support installation of both the Dropped Floor Pan and Electronics Management Tray.

FSR 80: supports either the Dropped Floor Pan or Electronics Management Tray individually, but not both together.

Designed & Built In-House

• 2.5mm laser-cut steel construction for strength and durability
• Precision-bent construction creates the recessed footwell while increasing rigidity
• Smooth edges and formed sides create a clean, finished installation
• Durable black powder-coated finish
• Designed, manufactured, and finished in-house by Focus Sim Racing

Fitment & Compatibility

• Designed for Focus Sim Racing aluminum profile chassis
• Mounts directly to chassis extrusion using included M8 hardware and T-nuts
• Installs between the seat and pedal area
• No drilling or permanent chassis modification required on compatible Focus Sim Racing chassis
• FSR One Twenty & FSR One Sixty: compatible with the Dropped Floor Pan and Electronics Management Tray installed together
• FSR 80: compatible with the Dropped Floor Pan or Electronics Management Tray individually

Compatibility with Other Aluminum Profile Chassis:
The Dropped Floor Pan may also fit aluminum profile rigs from other manufacturers. Focus Sim Racing chassis use a 580mm-wide lower chassis, placing the floor pan mounting locations at 540mm apart. If your chassis has compatible extrusion or mounting locations at 540mm spacing, the Dropped Floor Pan should be able to mount to your rig.

Because chassis dimensions, seat mounting layouts, and extrusion locations vary between manufacturers, we recommend measuring your chassis and checking clearance around your seat and seat slider before ordering.

Specifications

• Overall Size: 22.5" x 14 1/8"
• Dropped Section: 19.25" x 14 1/8"
• Drop Depth: 1.25"
• Bolt Pattern: 21 5/16" x 12 3/4"
• Chassis Mounting Spacing: 540mm
• Material: 2.5mm steel
• Finish: Black powder coat
• Mounting Hardware: M8 hardware and T-nuts included

The details underneath the driver matter just as much as the hardware in front of them. The Focus Sim Racing Dropped Floor Pan turns the open center of an aluminum profile chassis into a finished, functional footwell while helping create the clean, purpose-built appearance of a complete simulator.
